2200 lb Single Axle Kit Idler 73/58 – Master Kit (510S)

Build a complete 5′ x 10′ single axle utility trailer with this all-in-one 2,200 lb Master Kit. Designed around a 73″ hub face / 58″ spring center idler axle, this package includes the trailer blueprints, running gear, suspension, tires, fenders, coupler, jack, lighting, wiring, hinges, latches, tie-down hardware, safety chains, and other essential components needed for a complete trailer build.

Unlike a basic axle or rolling kit, this Master Kit adds the electrical system, trailer body hardware, safety equipment, and 5′ x 10′ straight utility trailer blueprints, giving you a much more complete foundation for a new build.

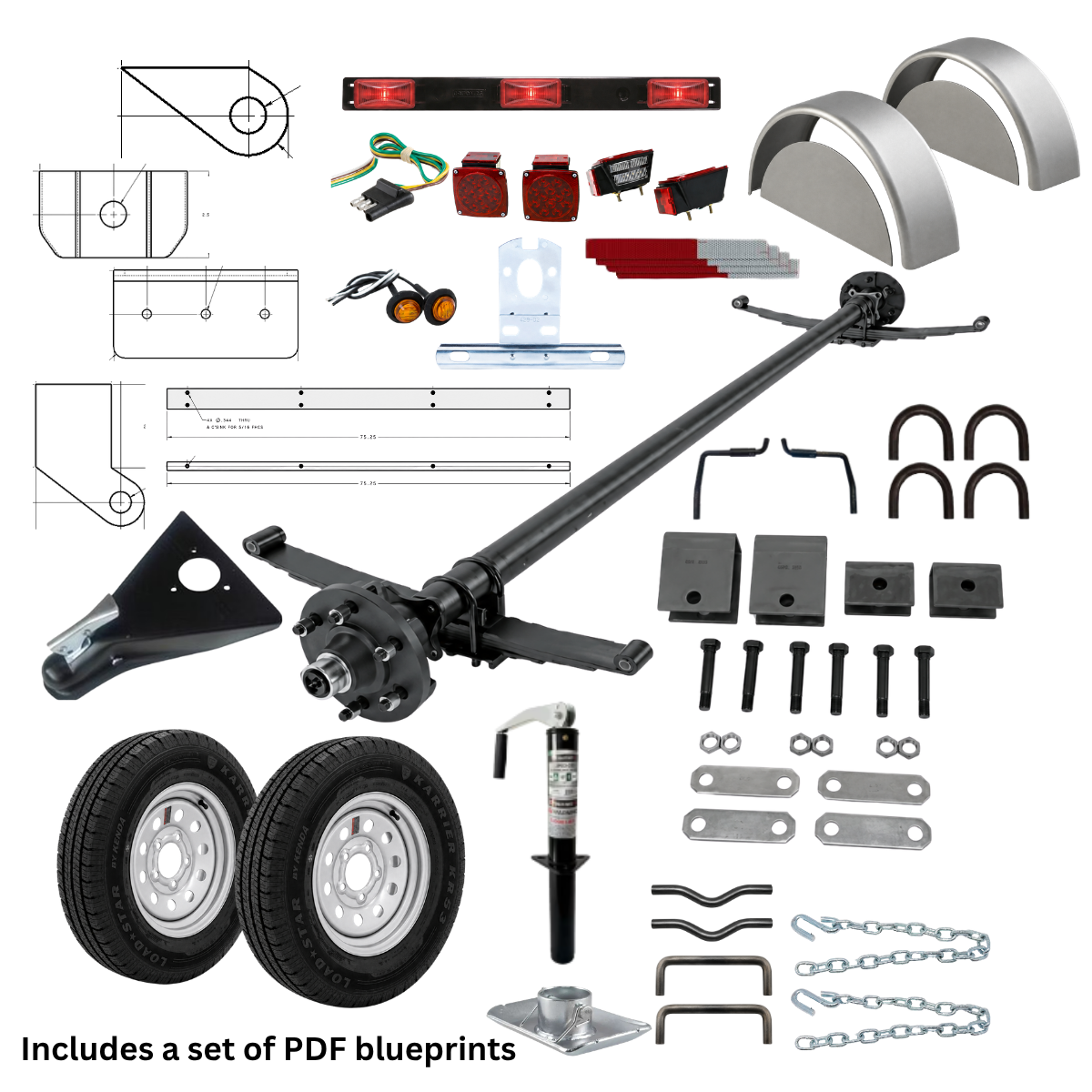

What’s Included

Blueprints

• (1) Utility Trailer 5′ x 10′ Single Axle Straight Blueprint Package

Axle & Suspension

• (1) 2,200 lb Idler Axle – 73″ Hub Face / 58″ Spring Center
• Double Eye Leaf Springs
• U-Bolt Mounting Hardware
• (1) Single Axle Hanger Kit

Tires, Wheels & Fenders

• (2) 205 Trailer Tires & Wheels
• (10) Lug Nuts
• (2) Smooth Rolled Single Axle Fenders
• (2) Single Fender Backs

Coupler, Jack & Safety Chains

• (1) 2″ Trailer Coupler
• (1) 5,000 lb Trailer Jack
• (1) Jack Foot Plate
• (2) 5/16″ x 30″ Grade 70 Safety Chains with 7,600 lb S-Hooks
• (2) Chain Loops

Trailer Wiring & Lighting

• (1) 25′ 4-Way Flat Trailer Wiring Harness
• (1) 12V LED Left Tail Light
• (1) 12V LED Right Tail Light
• (1) 3-Light LED Identification Light Bar
• (2) 3/4″ Amber LED Side Marker Lights
• (1) License Plate Bracket
• (2) Light Brackets

Gate & Body Hardware

• (1) Cover Plate
• (6) Inner Gate Hinges
• (2) Outer Gate Hinges
• (1) Left Tailgate Latch
• (1) Right Tailgate Latch
• (4) Tie-Down Rings
• (2) Indicator Tabs

Reflective Safety Markings

• (4) 2″ x 12″ Conspicuity Tape Strips
• (2) 1″ x 12″ Conspicuity Tape Strips

Kit Specifications

Features & Benefits

Complete 5′ x 10′ Trailer Build Package

This Master Kit goes well beyond basic running gear. It combines the trailer blueprints with many of the major mechanical, electrical, safety, and body components needed to build a 5′ x 10′ single axle utility trailer.

Trailer Blueprints Included

The included 5′ x 10′ single axle straight utility trailer blueprints provide the framework for constructing the trailer and help take the guesswork out of layout and component placement.

2,200 lb Idler Axle

The 73/58 idler axle provides a dependable foundation for a light-duty utility trailer and is paired with the necessary suspension and mounting components.

Complete Running Gear

Springs, U-bolt hardware, hanger components, tires, wheels, lug nuts, fenders, and fender backs are included to create the trailer’s complete rolling assembly.

Complete LED Lighting Package

LED tail lights, side marker lights, a three-light identification bar, wiring harness, light brackets, and license plate bracket provide the main components needed for a functional trailer lighting system.

Gate Hardware Included

Inner and outer gate hinges, left and right tailgate latches, and additional body hardware are included for constructing and securing the trailer gate.

Tie-Down & Safety Components

Four tie-down rings provide convenient cargo securement points, while Grade 70 safety chains, chain loops, and reflective conspicuity tape add important towing and visibility components.

Trailer Tongue Components

The included 2-inch coupler, 5,000 lb jack, jack foot plate, and cover plate provide key hardware for completing the front section of the trailer.

Common Applications

• 5′ x 10′ Utility Trailers
• Lawn & Landscape Trailers
• ATV & UTV Trailers
• Motorcycle Trailers
• Small Equipment Trailers
• Farm & Property Trailers
• Hunting Trailers
• General-Purpose Cargo Trailers
• DIY Trailer Builds
• Custom Fabrication Projects

Why Choose a Master Kit?

A trailer build can require dozens of individual components from multiple categories. A Master Kit simplifies the process by combining the blueprint package, axle and suspension, tires and wheels, fenders, towing hardware, lighting system, gate hardware, safety chains, reflective markings, and tie-down components into one package.

That means less time searching for individual parts and a clearer path from raw steel to a completed trailer.

Important Fitment & Build Information

Please verify all measurements, capacities, and component requirements before beginning your trailer build.

• Trailer Design: 5′ x 10′ Single Axle Straight
• Hub Face: 73″
• Spring Center: 58″
• Axle Capacity: 2,200 lbs
• Axle Type: Idler / Non-Braking
• Coupler Size: 2″
• Wiring: 4-Way Flat

The 2,200 lb axle rating does not automatically mean the completed trailer is rated for 2,200 lbs of payload. Final trailer capacity and legal GVWR depend on the completed trailer design and the lowest-rated component in the assembly, including the frame, axle, suspension, tires, wheels, coupler, and other hardware.

Need help with your build or selecting the correct kit? Contact Highway 96 Trailers and our team can help you choose the right components for your trailer project.
